This 48 ports WEB Smart Industrial gigabit PoE Switches fill the gap between unmanaged and fully managed switches.It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation. Web based management tool for quick and easy deployment and configuration making it ideal for deploying access points, VoIP phones and IP-based surveillance camera. It comes with 4 Ports 2.5G SFP+ fiber uplink which makes the installation more flexible.
Provide comprehensive security protection system, perfect QoS policy and flexible VLAN function, simple management and maintenance, meet the access and networking requirements of enterprises, communities, hotels, office networks and campus networks, suitable for hotels, campuses, factory quarters and middle schools. Small businesses form a cost-effective network. Supports the SmartLink power management function, which enables the PoE port priority mechanism to be powered off when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures that the critical equipment is preferentially powered, and the switch is overloaded run to protect the switch.
Efficient Secure Management Interface
For efficient management, the HANXIN Group HX348GPM series managed PoE switch is equipped with Web and SNMP management interfaces. The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. It is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions with user-friendly interfaces, the HX348GPM are the best choices for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. More importantly, they help SMBs upgrade their network infrastructures to the IPv6 era without any monetary investment.
Robust Layer 2 Features
The HX348GPM series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The HX348GPM series allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 9 trunk groups with 2 ports for each group, and supports connection fail-over as well.
Redundant Ring, Fast Recovery for Critical Network Applications
The HX348GPM Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 20ms.
Four 2.5G SFP+ Uplink Ports
The New release PoE switch comes with 4 2.5G SFP+ uplink ports with 2500Mbps transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the PoE ports can be used to their full potential.
Flexibility and Extension Solution
The additional Four mini-GBIC SFP+ slots built in the switch support dual speed, 2.5GBASE-SX/LX SFP fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 330 meters to 2km (multi-mode fiber) and to 20/40/60/100/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Smart PoE Power Supply

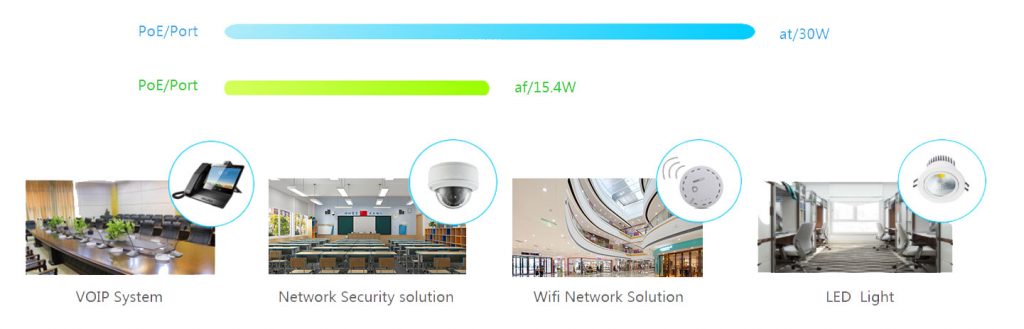

Featuring multiple 10/100/1000Mbps PoE ports which support IEEE 802.3af/at protocol and 4 Gigabit Combo uplink ports, the PoE Switch Series provides maximum power budget of 600W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.
PoE AI Watchdog
Detect PoE Camera when it is frozen, and reboot it automatically by the new AI PoE swtich
This PoE switch is based on the IEC61643-21:2000 standard,Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
|HX348GPM-425SFP+-L2||48 Ports 10/100/1000Mbps managed PoE swtich with 4 Ports 2.5G SFP+ Uplink ,6KV surge protection,IEEE802.3af/at|
