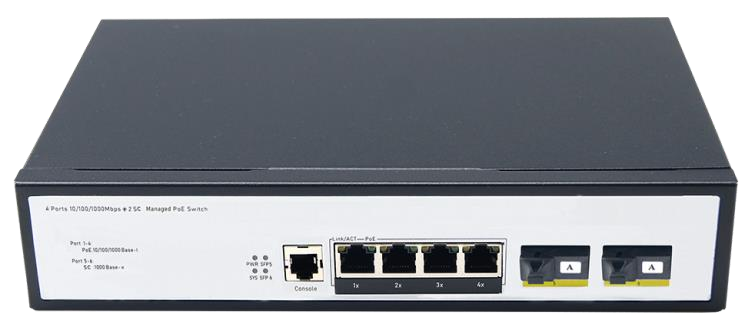

4 Ports 10/100/1000Mbps Managed PoE Switch with 2 Gigabit SC HX304GPM-2SSC20

This 4 ports WEB Smart Industrial gigabit PoE Switches fill the gap between unmanaged and fully managed switches.It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation. Web based management tool for quick and easy deployment and configuration making it ideal for deploying access points, VoIP phones and IP-based surveillance camera. It comes with 2 SC fiber uplink which makes the installation more flexible.

Provide comprehensive security protection system, perfect QoS policy and flexible VLAN function, simple management and maintenance, meet the access and networking requirements of enterprises, communities, hotels, office networks and campus networks, suitable for hotels, campuses, factory quarters and middle schools. Small businesses form a cost-effective network. Supports the SmartLink power management function, which enables the PoE port priority mechanism to be powered off when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures that the critical equipment is preferentially powered, and the switch is overloaded run to protect the switch.

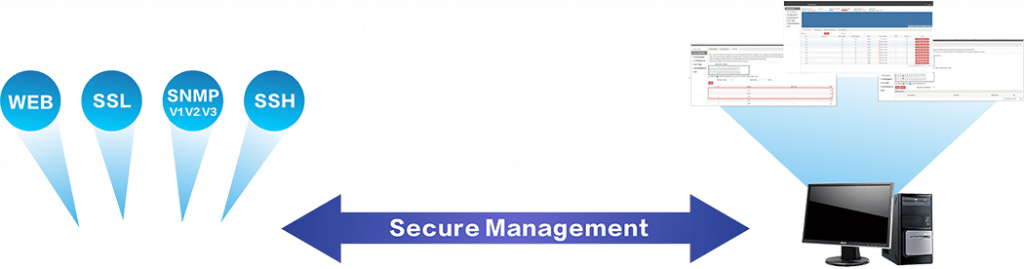

Efficient Secure Management Interface
For efficient management, the Benchu Group HX304GPM-2SSC20 series managed PoE switch is equipped with Web and SNMP management interfaces. The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. It is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

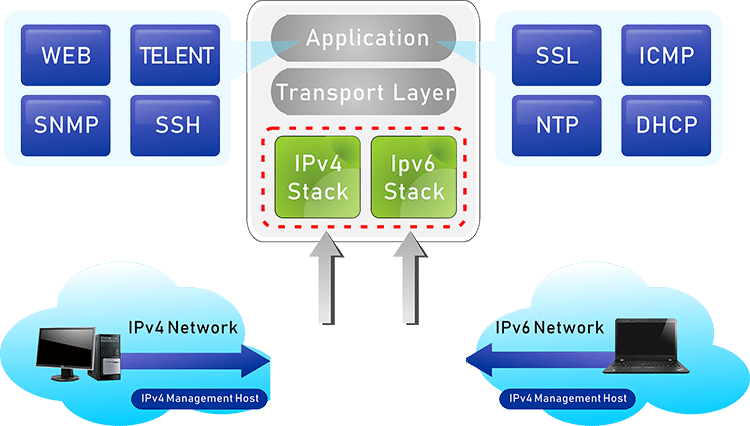

Solution for IPv6 Networking

With the IPv6/IPv4 dual stack and other management functions with user-friendly interfaces, the HX304GPM-2SSC20 are the best choices for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. More importantly, they help SMBs upgrade their network infrastructures to the IPv6 era without any monetary investment.

Robust Layer 2 Features

The HX304GPM-2SSC20 series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The HX304GPM-2SSC20 series allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 9 trunk groups with 2 ports for each group, and supports connection fail-over as well.

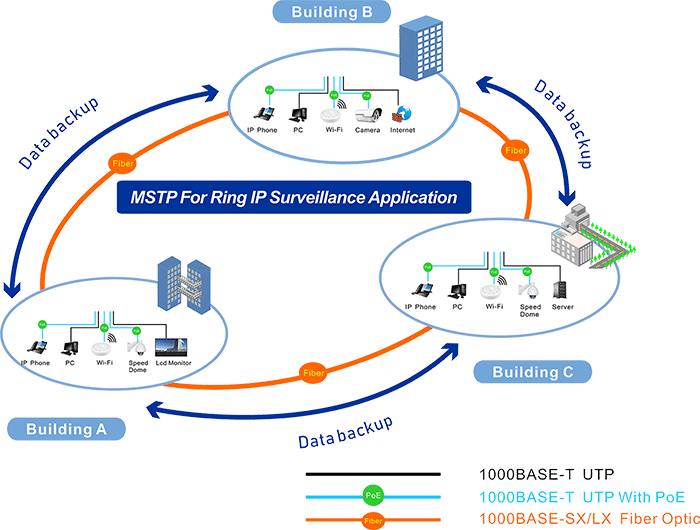

Redundant Ring, Fast Recovery for Critical Network Applications

The HX304GPM-2SSC20 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 20ms.

Two Gigabit SC Uplink Ports
The New release PoE switch comes with 2 Gigabit SC uplink ports with 1000Mbps transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the PoE ports can be used to their full potential.

Flexibility and Extension Solution

The additional Two SC Fiber Ports built in the switch support dual speed, 1000BASE-SX/LX SC fiber-optic modules, The distance can be extended from 550 meters to 2km (multi-mode fiber) and to 20/40/60/100/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Smart PoE Power Supply
Featuring multiple 10/100/1000Mbps PoE ports which support IEEE 802.3af/at protocol and 2 SC uplink ports, the PoE Switch Series provides maximum power budget of 65W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.

PoE AI Watchdog
Detect PoE Camera when it is frozen, and reboot it automatically by the new AI PoE swtich

Surge Protection
This PoE switch is based on the IEC61643-21:2000 standard,Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Ordering  Information

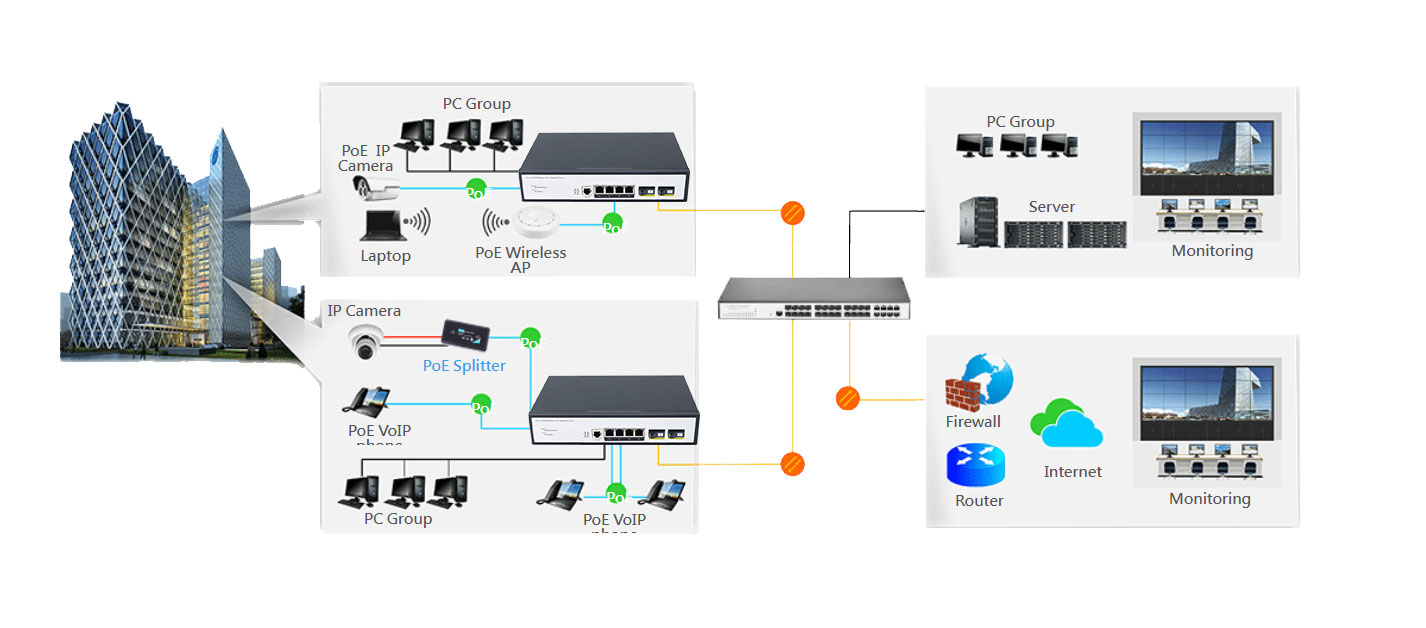

Perfectly Integrated Solution for PoE IP Security solution

This gigabit PoE Fiber switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat5 cable. HX304GPM-2SSC20 series features 4ch 10/100/1000M PoE ports with 2 gigabit SC Uplink and supply industry-standard IEEE 802.3af/at power. It also offers a simple, cost-effective and non-blocking wire-speed performance. It comes with a 11-inch rack mount metal housing, suitable for desktop deployment in Network Security application.

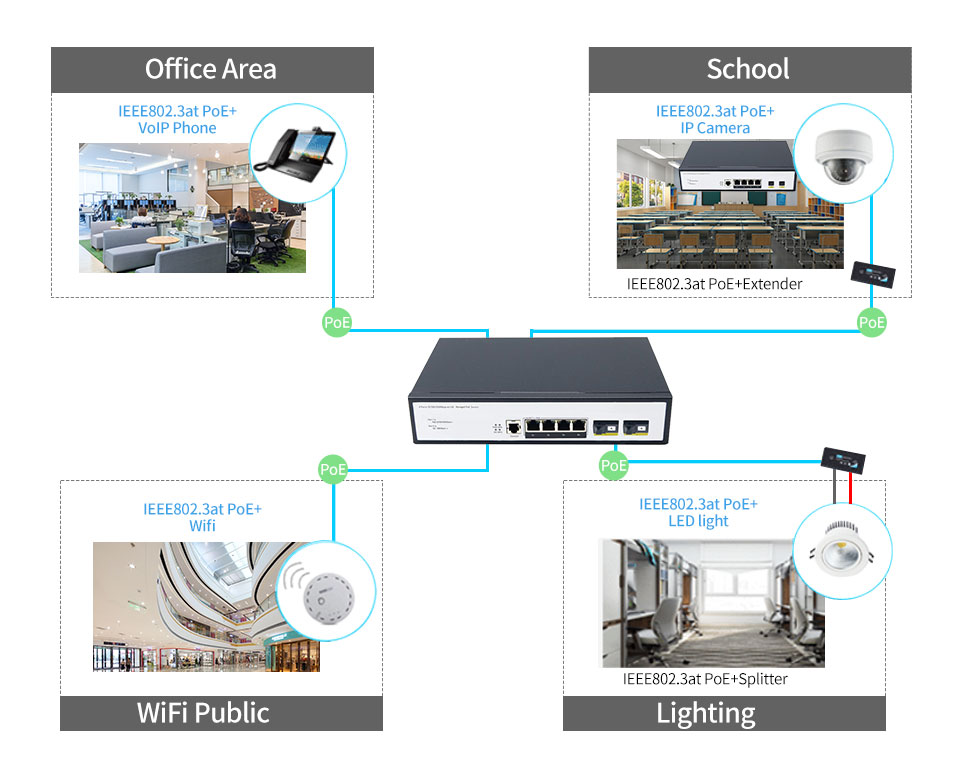

IP Office Department/Workgroup PoE Switch solution

To further expand the office premises, the additional IP telephones required could be installed at less cost via the PoE IP phone system, better than the traditional circuit wiring telephony system. The Benchu Group HX304GPM-2SSC20 series PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af/at compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected PoE switch, in this case,VoIp Phone deployment.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
